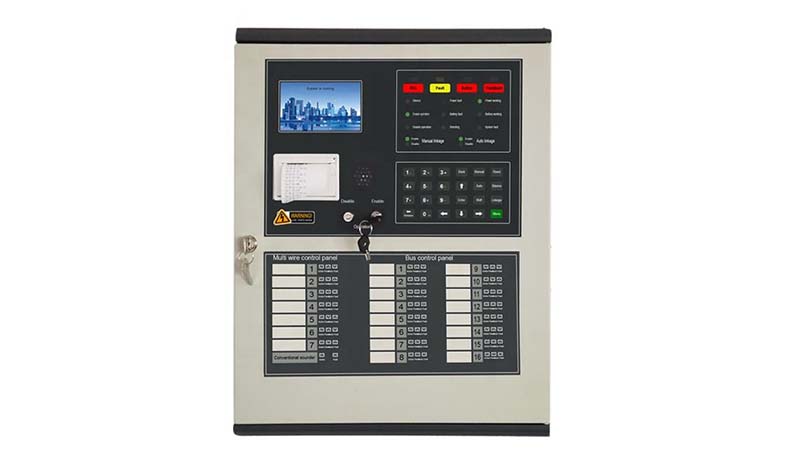

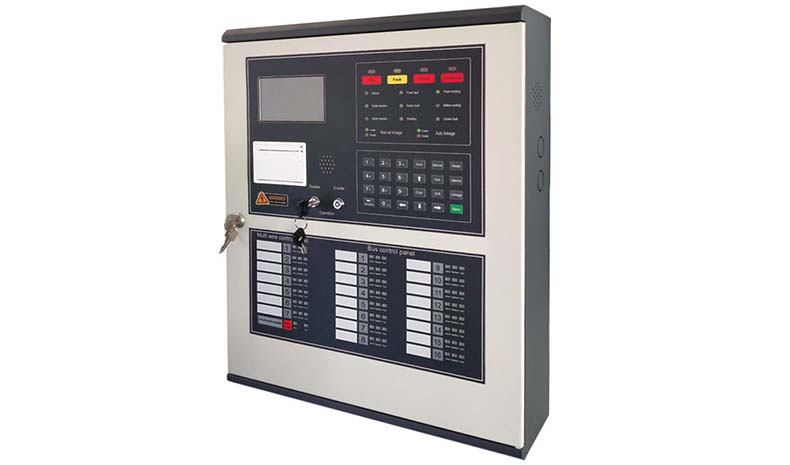

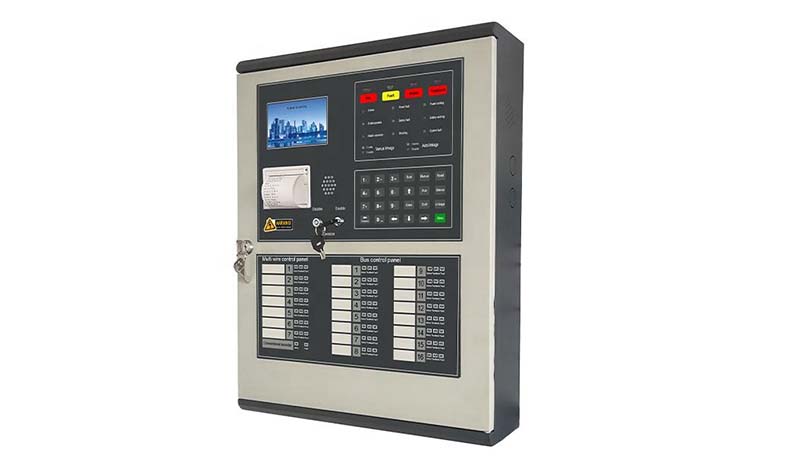

Nova 64D Fire Alarm Systems

PROJECT NAME

Product:
Part No:
Stock:
Warranty:
Condition:

Nova 64D Fire Alarm Systems
NVA-6004-FAS
Available
3 Years
Brand New

DOWNLOAD BROCHURE

Specifications

Loop: 2 loop.

Color: Grey.

Brand Name: Nova 64D.

Part No: NVA-6004-FAS.

Number of addresses: 400.

Battery: 7AH/12V, 2 pcs.

Linkage power output: 27V/3A.

Dimensions: L400*W500*H115 mm.

Operation Temperature: -10℃~+50℃.

Number of manual direct control output: 8 sets.

Bus loop output voltage: DC21V modulating.

Operation Humidity: 95% RH (no condensation).

Supply Voltage: AC 220 V(187~ 242V)@50/60 Hz.

Product Name: Addressable Fire Alarm Control Panel.

Specifications

Loop: 2 loop.

Color: Grey.

Brand Name: Nova 64D.

Part No: NVA-6004-FAS.

Number of addresses: 400.

Battery: 7AH/12V, 2 pcs.

Linkage power output: 27V/3A.

Dimensions: L400*W500*H115 mm.

Operation Temperature: -10℃~+50℃.

Number of manual direct control output: 8 sets.

Bus loop output voltage: DC21V modulating.

Operation Humidity: 95% RH (no condensation).

Supply Voltage: AC 220 V(187~ 242V)@50/60 Hz.

Product Name: Addressable Fire Alarm Control Panel.

Essential details

Loop: 2 loop.

Color: Grey.

Brand Name: Nova 64D.

Part No: NVA-6004-FAS.

Number of addresses: 400.

Battery: 7AH/12V, 2 pcs.

Linkage power output: 27V/3A.

Dimensions: L400*W500*H115 mm.

Operation Temperature: -10℃~+50℃.

Number of manual direct control output: 8 sets.

Bus loop output voltage: DC21V modulating.

Operation Humidity: 95% RH (no condensation).

Supply Voltage: AC 220 V(187~ 242V)@50/60 Hz.

Product Name: Addressable Fire Alarm Control Panel.
